| Category | Detail |
|---|---|
| LASER SYSTEM | |
| Laser Type | Diode-pumped solid-state laser (Nd:YVO₄) |
| Wavelength | 354.7 nm |
| Laser Power | 1000 / 2000 / 3000 mW |
| RECOATING SYSTEM | |
| Coating Method | Intelligent positioning with vacuum adsorption coating |
| Normal Layer Thickness | 0.1 mm |
| Rapid Prototyping Layer Thickness | 0.1 ~ 0.15 mm |
| High-Precision Layer Thickness | 0.05 ~ 0.1 mm |
| OPTICAL & SCANNING SYSTEM | |
| Spot Size (Diameter @ 1/e²) | 0.10 ~ 0.50 mm |
| Scanning Galvanometer | High-speed scanning galvanometer |
| Part Scanning Speed | 6.0 m/s (Recommended) |
| Part Jump Speed | 10.0 m/s (Recommended) |
| Reference Build Rate | 50 ~ 140 g/h |
| ELEVATOR SYSTEM | |
| Repeat Positioning Accuracy | ±0.01 mm |
| Lifting Motor | High-precision stepper motor |
| Reference Platform | Marble reference platform |
| RESIN VAT | |
| Standard Capacity | Approx. 115 L @ 300 mm (Z-axis) |
| Build Volume | 500 mm (X) × 500 mm (Y) × 300 mm (Z) |
| Max Part Weight | 60 kg @ 300 mm (Z-axis) |
| Photosensitive Resins | ZR680 (Fine White), ZR710 (Tough White), ZR820 (High Transparency) |
| SOFTWARE | |
| Network Type | Ethernet, TCP/IP, IEEE802.3 |
| Control Software | iSLA (ZERO 5.0) Manufacturing Software |
| Data Processing Software | 3dLayer |
| Data Interfaces | CLI files, SLC files, STL files |
| INSTALLATION CONDITIONS | |
| Power Supply | 220V (±10%) AC 50/60Hz, Single-phase, 5/10A |
| Ambient Temperature | 20 – 26ºC |
| Relative Humidity | Below 40%, non-condensing |
| Equipment Dimensions | 1.10 m (W) × 1.08 m (D) × 1.80 m (H) (excluding computer stand) |
| Equipment Weight | Approx. 600 kg |
| WARRANTY | |
| Laser Source | 5000 hours or 12 months (whichever occurs first) |
| Whole Machine | 12 months from the date of installation |
> Please note: Specifications are subject to change without notice. Contact a Forgecise representative for the most current technical data.

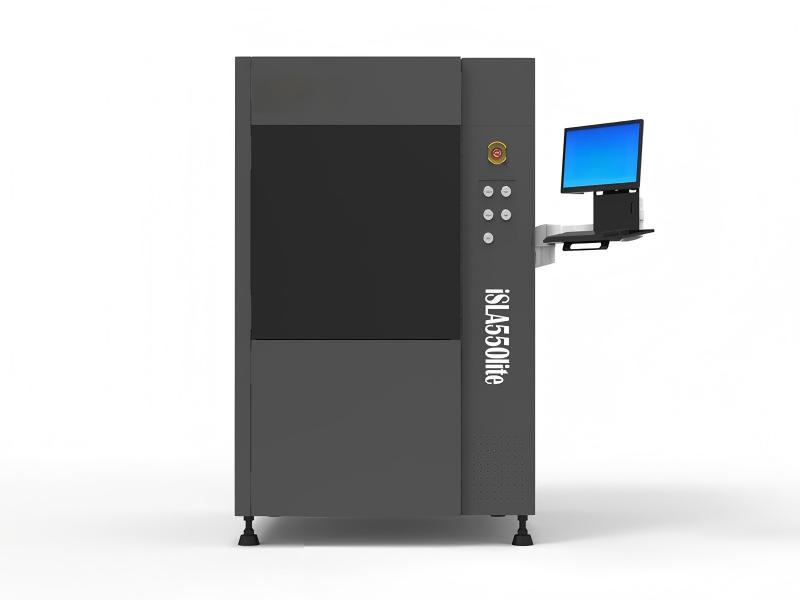

Elevate your additive manufacturing capabilities with the iSLA550Lite, a robust industrial Stereolithography (SLA) 3D printer engineered for speed, accuracy, and large-scale production. Designed for demanding applications in automotive, aerospace, and consumer electronics, it combines advanced optical engineering with intelligent software to deliver superior surface finish and dimensional stability.
Key Features & Advantages:
- Advanced UV Laser System: Equipped with a diode-pumped solid-state Nd:YVO₄ laser (354.7nm), available in 1000mW, 2000mW, or 3000mW configurations. This ensures rapid curing and exceptional detail resolution for complex geometries.
- Intelligent Recoating Technology: Our proprietary smart positioning with vacuum adsorption coating system guarantees uniform resin distribution. Choose between normal (0.1mm), rapid prototyping (0.1–0.15mm), or high-precision (0.05–0.1mm) layer thicknesses to optimize build time and surface quality.
- Massive Build Volume: With a generous space of 500mm (X) × 500mm (Y) × 300mm (Z) and a standard resin vat capacity of ~115L, the iSLA550Lite handles large parts or high-volume batch printing effortlessly, supporting max part weights up to 60kg.
- High-Speed Scanning & Precision: Powered by high-speed galvanometers, the system achieves part scanning speeds of 6.0 m/s and jump speeds of 10.0 m/s, resulting in reference build rates of 50–140 g/h. The marble reference platform and high-precision stepper motors ensure a repeat positioning accuracy of ±0.01mm.
- Versatile Material Compatibility: Fully compatible with Forgecise specialized photosensitive resins, including ZR680 (Fine White), ZR710 (Tough White), and ZR820 (High Transparency), catering to diverse functional requirements.
Industrial-Grade Reliability
Built for factory environments, the Forgecise iSLA550Lite operates reliably within 20-26ºC and low humidity conditions. It is the ideal solution for companies seeking to scale their rapid prototyping.
