| Category | Specifications |
|---|---|
| Laser System | • Laser Type: Fiber laser • Configuration: iSLM400D – dual-laser; iSLM400Q – quad-laser • Wavelength: 1064 nm • Laser Power per Source: 500 W |
| Recoating System | • Coating Method: Dual-directional blade recoating • Standard Layer Thickness: 0.05 mm • Rapid Build Layer Thickness: 0.05–0.10 mm • High-Precision Layer Thickness: 0.02–0.05 mm |
| Optical & Scanning System | • Laser Spot Size (diameter @ 1/e²): 0.06–0.20 mm • Scan Head: High-speed galvanometer • Recommended Part Scan Speed: 1.0–4.0 m/s • Jump Speed: ≥10.0 m/s • Typical Build Rate: 15–50 cm³/h (for iSLM400D) |
| Shielding System | • Protective Gas: Nitrogen or argon (argon required for reactive metals) • Gas Flow Control: 0–3 L/min with intelligent regulation • Filtration: High-efficiency gas recirculation and dust removal system |
| Build Chamber | • Chamber Volume: Approx. 56 L • Build Envelope: 400 mm (X) × 350 mm (Y) × 400 mm (Z) (excluding corner radii and mounting features) • Max Part Weight: 150 kg • Heating Method: Precision resistance wire heating • Compatible Materials: Stainless steel (316L), aluminum alloy (AlSi₁₀Mg), titanium alloy (TC4), cobalt-chrome (MP1), tool steel (MS1), nickel-based superalloy (IN718), high-conductivity copper (QCr1), etc. |
| Software & Connectivity | • Network Interface: Ethernet, TCP/IP, IEEE 802.3 • Machine Control Software: iSLM (Presto SLM) • Data Preparation Software: 3dLayer (for slicing, support, and nesting) • Supported File Formats: CLI, SLC, STL |
| Installation Requirements | • Power Supply: 380 V (±10%) AC, 50/60 Hz, three-phase, 25 A • Ambient Temperature: 20–26°C • Relative Humidity: <40% (non-condensing) • Machine Dimensions: 2.39 m (W) × 1.43 m (D) × 2.46 m (H) (excluding access platform) • Machine Weight: Approx. 3000 kg |
| Warranty | • Laser Source: 5,000 hours or 12 months (whichever occurs first) • Full Machine: 12 months from installation date |
Note: Specifications are subject to change. For the most current technical documentation, please contact a Forgecise representative.

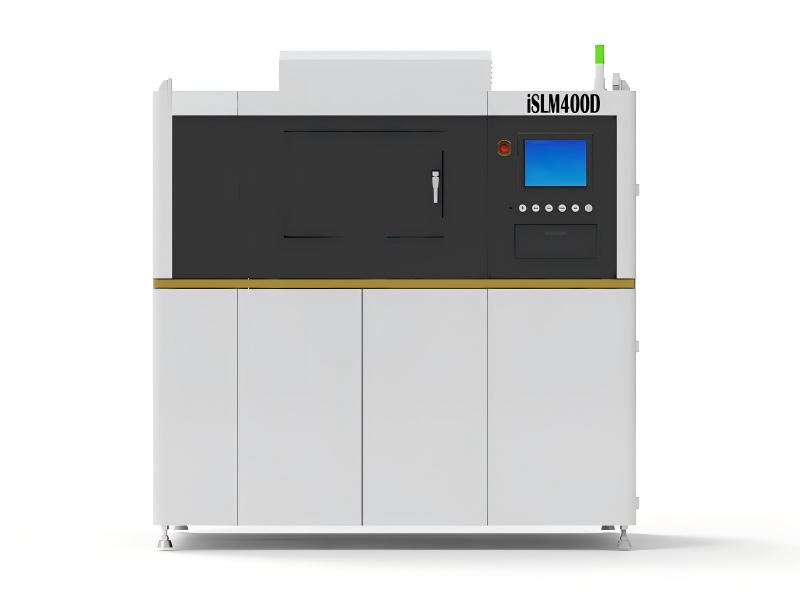

The iSLM400D/Q is a high-productivity industrial metal additive manufacturing system built on Selective Laser Melting (SLM) technology, designed for demanding serial production and large-part applications. With a generous 400 × 350 × 400 mm build volume and optional dual (iSLM400D) or quad (iSLM400Q) 500W fiber lasers, it delivers unmatched throughput—up to 50 cm³/h—while maintaining >99% part density and exceptional mechanical integrity.
Engineered for industries such as aerospace, power generation, automotive, and precision tooling, the iSLM400D/Q enables direct fabrication of complex, end-use metal components without tooling or intermediate steps. Its advanced features include:
Backed by Forgecise’s global service network and engineering support, this system redefines scalability in professional metal 3D printing.
