Executive Summary & Key Takeaways
- What is WAAM? Wire Arc Additive Manufacturing (WAAM) uses an electric arc to melt metal wire, building large 3D metal components layer-by-layer using industrial robot arms.
- The Core Challenge: Uncontrolled heat accumulation causes severe thermal deformation, internal stress, and loss of dimensional accuracy.
- The 7 Key Parameters: Print quality depends on balancing Current/Voltage, Wire Feed Speed, Travel Speed, Layer Height, Interlayer Temperature, Shielding Gas Flow Rate, and Weaving Parameters.
- 6 Smart Path Strategies: Heat buildup can be reduced using Raster Paths, Sub-Domain Partitioning ($A, B, C, D$), Alternating Directions, Jumping Paths, Dwell Time, and Interlayer Cooling.
- The Move to Closed-Loop: Modern WAAM relies on multi-axis tool orientation ($\theta, \beta$), non-planar slicing, and dynamic feedback loops (evolving from simple threshold stops to deep reinforcement learning and multi-physics modeling).
Table of Contents
Section 1: Introduction to WAAM and Thermal Management
What is Wire Arc Additive Manufacturing (WAAM)?
Wire Arc Additive Manufacturing (WAAM) is a metal 3D printing process that combines standard gas metal arc welding (GMAW) equipment with multi-axis industrial robot arms. Instead of melting expensive metal powders with lasers, WAAM feeds commercial metal wire into an electric arc. The arc melts the wire to build large metal structures layer-by-layer.
+-----------------------------------------------------------------------+
| THE CORE LOGIC OF WAAM |
| |
| Feed-Forward Path Planning + Feedback Closed-Loop Control |
| (Trajectories & Thermal) (Sensors & Real-Time Adjustments) |
| | |
| v |
| Co-Management of Heat Input & Thermal Accumulation |
| | |
| v |
| High-Quality, High-Precision 3D Metal Parts |
+-----------------------------------------------------------------------+
The Main Challenge: Managing Heat
While WAAM offers high deposition rates and lower material costs than powder systems, it faces one main physical hurdle: heat accumulation.
Because an electric arc creates intense heat, continuous printing causes thermal energy to build up in the part. Unchecked heat buildup causes three main problems:
- Part Distortion & Warping: Metal expands as it heats and contracts as it cools down unevenly.
- Residual Stress: Trapped stress weakens the internal strength of the printed part.
- Melt Pool Instability: High heat makes the liquid metal pool too wide or runny, causing the material to sag or collapse.
To solve these problems, modern WAAM systems combine feed-forward path planning (calculating motion and cooling strategies in advance) with feedback closed-loop control (using real-time sensors to adjust printing settings on the fly).
Section 2: The 7 Key Process Parameters in WAAM
Getting a solid print in WAAM requires setting 7 main process parameters. Each parameter changes either the heat energy entering the weld or the shape of the deposited metal bead.
| Parameter | Primary Function & Physical Mechanism | Impact on Print Quality |
|---|---|---|
| 1. Current / Voltage | Directly controls total heat input ($\text{Heat Input} \propto V \times I$) and electric arc stability. | High settings increase melt depth; wrong settings cause arc flickering or burn-through. |
| 2. Wire Feed Speed (WFS) | Determines the volume of metal wire delivered into the melt pool per unit of time. | Dictates melt pool size, bead thickness, and overall material deposition rate. |
| 3. Travel Speed (TS) | The linear speed at which the robot arm moves along the deposition path. | Controls heat input density per unit length and total printing efficiency. |
| 4. Layer Height | The vertical distance the torch raises between consecutive passes. | Directly affects layer-to-layer bond strength and outer surface finish. |
| 5. Interlayer Temperature | The recorded temperature of the underlying metal layer before depositing the next layer. | The main control variable for managing thermal accumulation, stress, and warping. |
| 6. Shielding Gas Flow Rate | Delivers gas (such as Argon or $\text{CO}_2$ mixtures) over the molten metal pool. | Protects hot molten metal from oxygen to prevent rust and internal air pockets (porosity). |
| 7. Weaving Parameters | Side-to-side oscillation frequency, width, and pauses of the welding torch. | Adjusts the width and shape of a single pass, spreading heat more evenly. |
Section 3: Smart Path Planning & Temperature Control Strategies
To stop heat from building up in specific spots, software algorithms create specialized motion paths. Here are the 6 main path and thermal control strategies used in WAAM:
1. Raster Path 2. Sub-Domain Partitioning 3. Alternating Direction
[===>] +-------+-------+ Layer 1: [====>]
[<===] | A | B | Layer 2: [<====]
[===>] +-------+-------+ (Balances heat)
(Back-and-forth grid) | C | D |
+-------+-------+
(Cooling sub-zones)
4. Jumping Path 5. Active Dwell Time 6. Interlayer Cooling
(1)----->(3) [Print Pass] [Fan / Cold Plate]
(4)<-----(2) | |
(Skips adjacent [Pause & Cool] [Forced Air / Water]
zones) [Print Pass] (Maintains temp window)
1. Raster Path (Back-and-Forth Grid)
The torch moves back and forth in a continuous grid-like line. This path keeps deposition speed high and creates uniform layer thickness across wide surfaces.
2. Sub-Domain Partitioning ($A, B, C, D$)
Large cross-sections are split into smaller sub-zones labeled $A$, $B$, $C$, and $D$. The robot prints zone $A$, jumps to zone $C$, moves to $B$, and finishes at $D$. This gives each section time to cool naturally before adjacent metal is laid down.
3. Alternating Direction
The robot flips its movement direction between layers (or between side-by-side beads). For instance, Layer 1 prints from left to right, while Layer 2 prints from right to left. This balances heat distribution and stops the part from leaning to one side.
4. Jumping Path
Instead of printing lines right next to each other, the robot jumps across separate areas of the part. Skipping neighbor lines eliminates extra travel heat and stops hot spots from forming.
5. Active Dwell Time
The system inserts planned pauses between passes or layers. By shutting off the electric arc temporarily, the part uses natural air and contact cooling to drop below target thermal limits.
6. Interlayer Cooling
Cooling gear works directly inside the print space. Tools like forced air blasts, localized gas jets, or water-cooled base plates drop temperatures quickly. Active cooling holds the component in a safe temperature window without long pause times, keeping production fast.
Section 4: 3D Metal Formation and Tool Orientation
Contour vs. Raster Fill Integration
Creating a strong 3D shape requires combining two path styles:
- Contour Path (Outer Shell): The torch outlines the outer border of the part first. This forms a clean outer edge and establishes accurate geometric boundaries.
- Raster Path (Internal Fill): The torch fills the solid internal space inside the contour using parallel or zig-zag patterns.
+-----------------------------------------------------------------------+
| TYPICAL WAAM BEAD DEPOSITION |
| |
| Contour Path (Outer Wall) Raster Path (Internal Fill) |
| +---------------------------+ +---------------------------+ |
| | |=======================| | | |=====> <=====| |=====>| | |
| +---------------------------+ +---------------------------+ |
| |
| Key Timed Events: |
| • Start Point (Arc Ignition) |
| • Stop Point (Arc Extinction & Crater Fill) |
| • Interlayer Lift (Vertical step up per layer) |
+-----------------------------------------------------------------------+
Every motion path includes key timed steps:
- Start Point: The exact spot where the arc strikes. Current and wire feed speed ramp up smoothly to create a stable pool without spatter.
- Stop Point: The spot where the arc turns off. Settings adjust to fill the end crater and stop cracks from forming during cooling.
- Interlayer Lift: When a layer finishes, the robot raises vertical height (interlayer lift) equal to the measured layer thickness before starting the next pass.

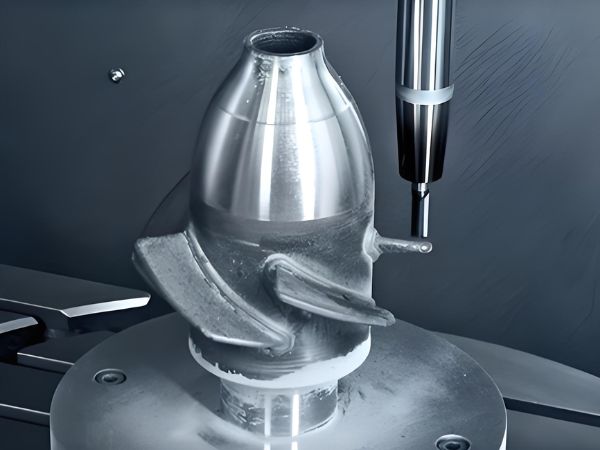

Multi-Axis Tool Orientation ($\theta$ and $\beta$)
When printing curved shapes or overhangs, pointing the torch straight down does not work—gravity causes liquid metal to drip or sag.
6-axis industrial robots tilt and turn the welding torch relative to the workpiece surface to prevent sagging:
- $\theta$ (Deflection / Tilt Angle): The angle between the welding torch center line and the surface normal line.
- $\beta$ (Attitude / Work Angle): The rotation angle of the torch relative to the travel direction line.
By adjusting $\theta$ and $\beta$ continuously, the robot uses surface tension and arc pressure to hold the melt pool in place. This lets you print overhangs and curved walls cleanly without adding temporary support structures.
Section 5: The Closed-Loop Control Chain and Input/Output Mapping
Pre-print calculations cannot account for minor room drafts or gradual heat buildup during multi-hour builds. Real-time closed-loop control acts as a live correction system for WAAM machinery.
The 6-Step Feedback Loop
$$\text{Target Shape} \longrightarrow \text{Path Plan} \longrightarrow \text{Deposition Execution} \longrightarrow \text{Sensor Monitoring} \longrightarrow \text{Deviation Recognition} \longrightarrow \text{Parameter Adjustment}$$
+-----------------------------------------------------------------------+
| THE CLOSED-LOOP CONTROL WORKFLOW |
| |
| [1. Target Shape] ----> [2. Path Plan] ----> [3. Deposition Exec] |
| ^ | |
| | v |
| [6. Param Adjustment] <-- [5. Deviation ID] <-- [4. Sensor Monitor] |
+-----------------------------------------------------------------------+
- Target Shape: The 3D CAD model defines the final part dimensions.
- Path Plan: Slicing software sets robot paths, tool angles, and base settings.
- Deposition Execution: The robot arm and power supply carry out the physical weld deposition.
- Sensor Monitoring: High-speed cameras, thermal cameras, laser scanners, and meters watch the active print zone.
- Deviation Recognition: System software compares live sensor data (melt pool size, surface shape, temperature) against the target model to spot errors instantly.
- Parameter Adjustment: Controllers calculate corrections and send fast updates (changing current, speed, or wire feed) back to the robot and welder.
Input to Output Mapping in WAAM
Closed-loop controls maintain quality by adjusting specific inputs to achieve exact target outputs.
CONTROL INPUTS MEASURED OUTPUTS
+---------------------------+ +---------------------------+
| Heat Input (Current/Volt) | -------\ | Bead Width |
| Wire Feed Speed (WFS) | ---------> | Reinforcement Height |
| Travel Speed (TS) | ---------/ | Interlayer Temperature |
| Tool Orientation (θ, β) | | Surface Quality |
+---------------------------+ +---------------------------+
- Control Inputs (Settings You Adjust):
- Heat Input (Current and Voltage)
- Wire Feed Speed
- Travel Speed
- Tool Orientation Angles ($\theta, \beta$)
- Measured Outputs (Results You Track):
- Bead Width: The side-to-side width of the deposited metal track.
- Reinforcement Height: The extra height the weld bead stands above the prior layer.
- Interlayer Temperature: The real-time temperature of the underlying metal layer.
- Surface Quality: Surface smoothness, lack of spatter, and bead consistency.
If an infrared camera detects that the interlayer temperature is getting too high, the system drops current or speeds up travel speed. If a laser scanner finds that bead height is too low, the system boosts wire feed speed right away.
Section 6: Industry Trends in WAAM
Three major technical developments are changing how industrial Wire Arc Additive Manufacturing operates:
1. Interlayer Temperature is the Primary Control Target
Managing interlayer temperature is now standard practice. It is the most effective variable for stopping internal stress, preventing part warping, and keeping metal grain structure uniform across large builds.
2. Multi-Axis Motion Combined with Non-Planar Slicing
Standard flat horizontal slicing is giving way to non-planar slicing paths. When matched with multi-axis tool angles ($\theta, \beta$), non-planar WAAM builds organic curves, shifting wall thicknesses, and steep overhangs without support structures or extra machine cleanup.
3. Upgrading to AI-Driven Controls
Closed-loop control is moving beyond basic rules:
- Previous Approach: Simple single-variable limits (such as if temperature passes 300°C, stop printing).
- Modern Approach: Multi-variable optimization driven by Artificial Intelligence (AI), Deep Reinforcement Learning (DRL), and real-time physics simulations. These smart tools predict thermal shifts before they happen, adjusting several settings at once to maintain dimensional accuracy.
Section 7: Frequently Asked Questions (FAQ)
Q1: Why is interlayer temperature so vital in Wire Arc Additive Manufacturing?
Direct Answer: It stops metal warping and wall collapse by keeping previous layers at a stable temperature.
Detailed Explanation: Interlayer temperature sets how underlying metal layers react when new heat arrives. If the lower layer stays too hot, the new melt pool spreads out too wide and flows too fast. This fluid behavior leads to drooping walls, loss of shape, and high internal stress. Keeping this temperature in a tight range preserves bead shape and prevents structural twisting.
Q2: What is the main difference between contour paths and raster paths?
Direct Answer: Contour paths trace the outer edges, while raster paths fill the inside volume.
Detailed Explanation: A contour path outlines the external boundary of a layer to create clean outer edges and clear geometry. A raster path moves back and forth in parallel or zig-zag patterns inside those outer borders to fill the solid internal body of the component rapidly.
Q3: How does closed-loop control prevent print errors in WAAM?
Direct Answer: It tracks the print with sensors and fixes speed, heat, or wire settings in real time.
Detailed Explanation: Closed-loop control relies on real-time sensors—like thermal infrared cameras and laser profile sensors—to monitor weld behavior. When the system detects a shift in bead width, layer height, or surface heat, it automatically alters parameters like current, wire speed, or travel speed to fix the defect before it ruins the build.
Q4: What do tool angles ($\theta, \beta$) do during robotic metal printing?
Direct Answer: They tilt the welding torch to stop liquid metal from dripping on curved or slanted surfaces.
Detailed Explanation: Deflection angle ($\theta$) and attitude angle ($\beta$) give an industrial robot arm full freedom to tilt the welding torch relative to the part surface. This multi-axis control offsets gravity when depositing metal on curved or angled lines, holding the molten metal in place without needing sacrificial support structures.
Glossary of Technical Terms
- Direct Energy Deposition (DED): An additive manufacturing method where focused energy (arc, laser, or beam) melts material as it is applied.
- Gas Metal Arc Welding (GMAW): An electric arc welding process using a continuous wire electrode protected by shielding gas.
- Interlayer Lift: The programmed height step applied to the robot arm after completing a single layer.
- Multi-Physics Modeling: Computer simulations that calculate multiple physical forces (fluid dynamics, heat transfer, stress) simultaneously.
- Reinforcement Height: The height of the deposited weld bead above the flat base or lower layer.
